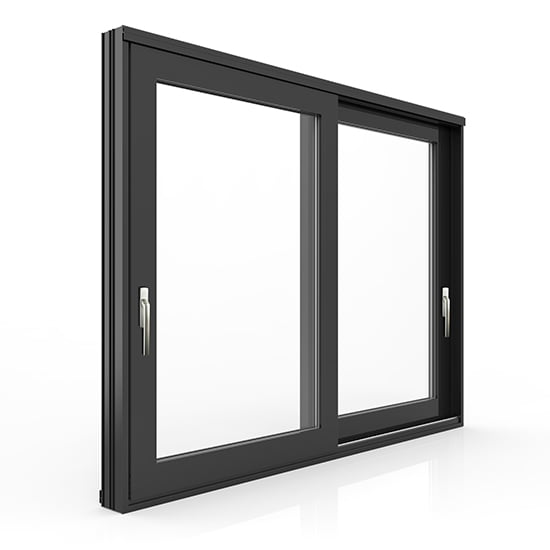

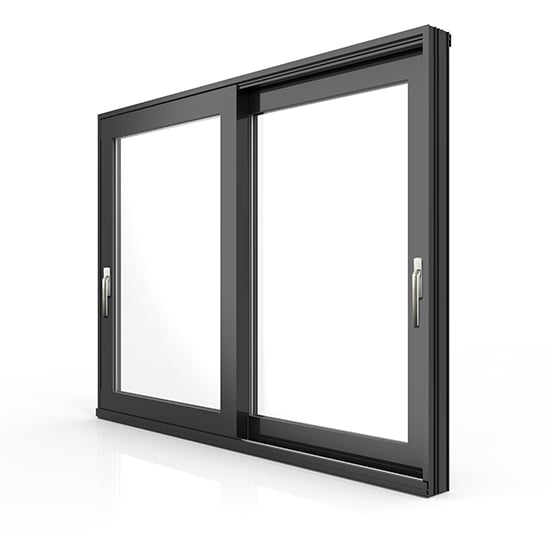

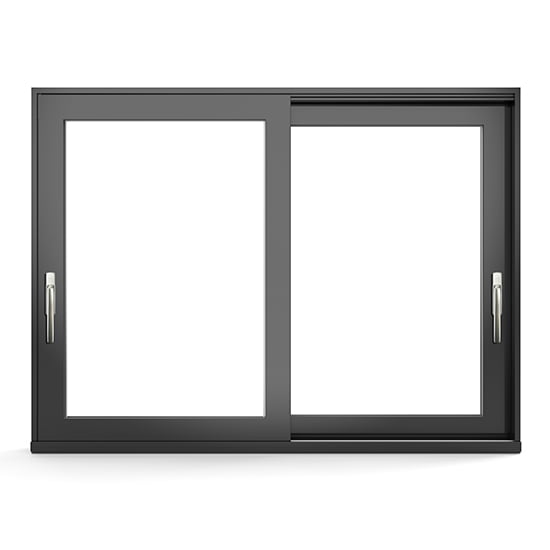

HSD190 series Aluminium lift&slide door
HSD190 is a high-end class LIFT-SLIDE system, for huge opening with impressive and luxurious.
HSD190 system has an Intelligent and smart drainage device guarantees water tightness.
It can be a classic SLIDING with same profiles and with the same performances.
Corner constructions without mullion profiles connection.
Stainless steel rail for minimizing the friction between frames and sashes. More smoothly slide of the sashes.
Product Details

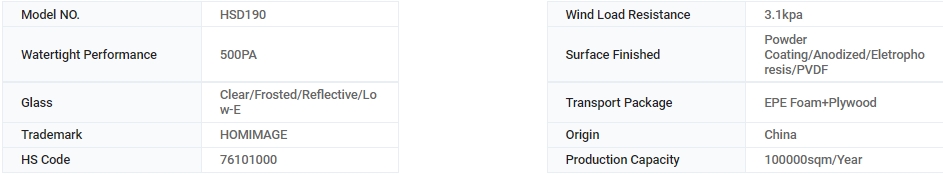

Basic Info.
POWDER COATING
ANODIZED&ELECTROPHORESIS
WHAT PRODUCTS WE OFFER
As of now we have successfully designed, manufactured and supplied globally the entire range of aluminium architectural and industrial products and hardwares and it includes the following:
WHAT SERVICE WE OFFER
Customized
Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support
The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design
Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
FAQ
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What’s the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight.
| Performance | ||||||||
Heat Preservation Performance W(m2.k) | Sound Insulation Performance (DB) | Watertight Performance (Pa) | Airtight Performance | Wind Load Resistance (KPA) | ||||
| 6+12A+6 Low-E,2.3-2.8, level 5/6 | 35DB level 4 | 500PA level 5 | level 6 | 3.1KPA level 5 | ||||
| Parameters | ||||||||
| Suitable Width/Height of Sash (mm) | Visible Width/Height (mm) | Aluminium width (mm) | Glass(Thickness | |||||
| Lift&Slide Door -Width 720-3300mm -Height 1800-2700mm -Weight 300kg | HSD190/HSD130 Frame Width 40mm; Sash Width 100mm. | HSD190/HSD130 Frame Depth 130/190mm Sash Depth 50mm | SGU: 8-10mm DGU: 24-35mm | |||||
