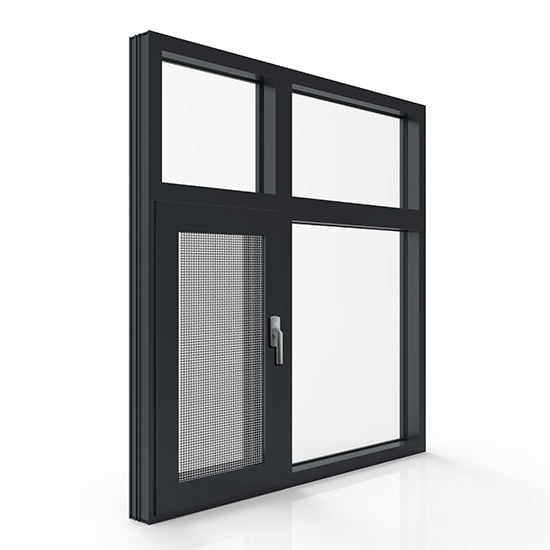

Hot Selling Aluminium Casement Door High Performance Tempered Glass Swing Door

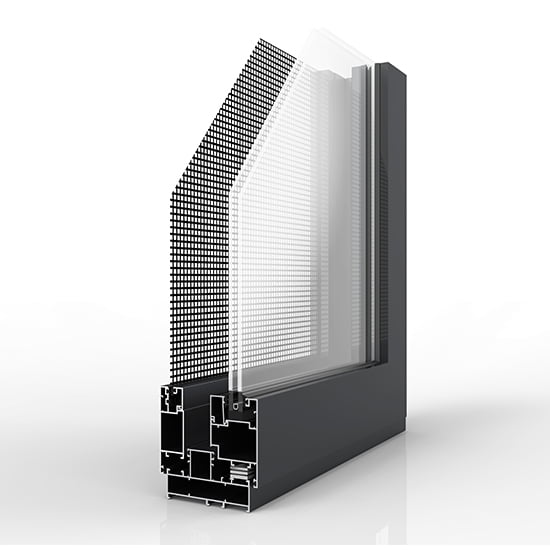

The pivot sash and fix of HD49 designed in right angle style, showing  a simple fashion idea.
Adopt 6+9A+6 DGU glass, which has good sound insulation to reduce the harm of noise  to the body and enable you a quiet and comfortable living environment.
Glass beads adopted, making it easy for glass installation.

Features

  • Material: Aluminum Alloy
  • Open Style: Opening
  • Frame Material: Aluminum Alloy
  • Style: Modern
  • Opening Pattern: Horizontal
  • Function: Heat Insulation, Soundproof, Anti-Theft, Airproof, Insect-proof, Dust-proof, Invisible,...

Product Details

1) The pivot sash and fix of HD49 designed in right angle style, showing  a simple fashion idea.

2) Adopt 6+9A+6 DGU glass, which has good sound insulation to reduce the harm of noise  to the body and enable you a quiet and comfortable living environment.

3) Glass beads adopted, making it easy for glass installation.

POWDER COATING

ANODIZED&ELECTROPHORESIS

WOODEN FINISHED

WHAT PRODUCTS WE OFFER

As of now we have successfully designed, manufactured and supplied globally the entire range of aluminium architectural and industrial products and hardwares and it includes the following:

  • Aluminium profiles
  • Sliding Doors
  • Sliding Windows
  • Entrance Doors
  • Casement Windows
  • Bi-folld door
  • Unitized Curtain Walls
  • Shopfront
  • Sun rooms
  • Partitions
  • Balcony railings
  • Structural Glazing
  • aluminium cladding
  • Aluminium formworks

WHAT SERVICE WE OFFER

Customized

Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.

Technical Support

The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.

System design

Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.

FAQ

Q: Are you trading company or manufacturer?

A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience.  And you are warmly welcomed to visit us.

Q: How long is your delivery time?

A: Generally it is 15-20 workdays after receiving payment.

Q: Do you provide samples for free? What’s the MOQ?

A: The new die samples are free for approval and inspection. The MOQ is 8-10tons

Q: What is the payment terms?

A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight.

TECHNICAL PARAMETERS



Performance
Heat Preservation Performance
W(m2.k)
Sound Insulation Performance
(DB)
Watertight Performance
(Pa)
Airtight PerformanceWind Load Resistance
(KPA)
3.2
level 4
35DB
level 4
200PA
level 2
level 33.0KPA
level 5
Parameters
Sash Width/Height
(mm)

Visible Width

(mm)

Depth
(mm)
Glass(Thickness)
-Width   500-1100mm
-Height 1920-2800mm
-Weight 120kg
Frame Width  50mm;
Sash  Width  100mm.
Frame Depth  80mm
Sash  Depth  49mm
SGU:
5-10mm
DGU:
19-24mm
