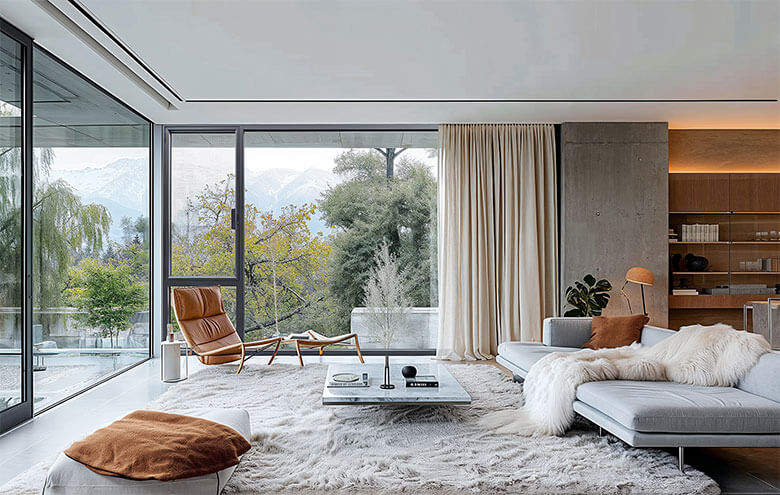

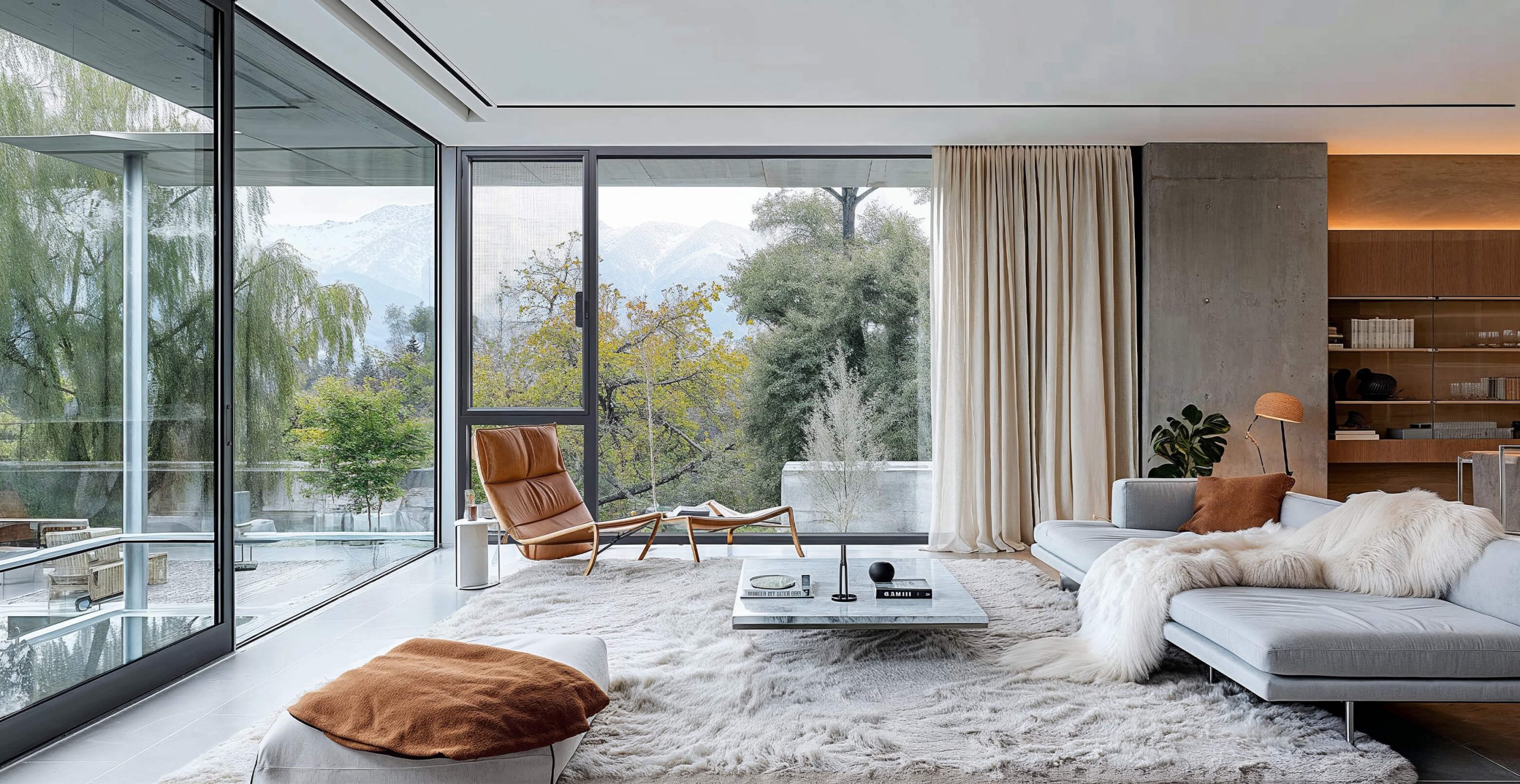

ROW High Perforemance Outward Opening Window Narrow Frame Design ROW100P

Bucalu established an industry-leading window and door laboratory and testing center. After ten years of relentless effort, our testing center now covers 4,000 square meters, with an investment exceeding 60 million yuan, performing approximately 11,000 tests annually. This has resulted in an extensive database and a wealth of technical expertise.

Product Details

Upgraded anti-prying technology: The clamping locking system + back locking point are adopted, and the anti-prying ability up to the EU RC2 safety level.



Upgraded viewing experience: Narrow frame design, flush frame sash design for indoor and outdoor use, simple and neat lines, simple and flat facade effect, creating an ultimate viewing experience.



Upgraded sealing performance: Three layers of sealing processes by adhesive tape and anti-shrinkage clamping design of the adhesive strip double the sealing ability of doors and windows, making it higher and more stable.



Upgraded integrated window and screen: High strength integrated screen windows are sealed with a press fit full circle, providing excellent mosquito and insect resistance. It is characterized by safety, reliability and beauty.



Practical screen window system: The systematic structural design of screen window glass guardrail takes into account mosquito prevention and safety performance, multiple protections, and high practicality. The inward opening design of the screen sash facilitates cleaning and mainte­nance.

Parameter

Wall thickness of main profile1.8mm
Acoustic performance GB/T 8485Rw up to 42dB
Air permeability performance GB/T 7106Level 8
U value rating GB/T 8484Uw up to 1.4W/m²K



Opening Sash Size & WeightWidth≤700mm,Height≤1,700mm,Weight≤80Kg,Glass thickness≤35mm
Waterproof performance GB/T 7106Level 6
Wind load resistance performance GB/T 7106Up to 5,000Pa
