RSD Panorama-Sliding Door Systems RSD 125P

RSD Panorama-Sliding Door Systems RSD 125P

Aluminum alloy sliding doors are usually equipped with effective insulation materials, which helps to reduce the exchange of indoor and outdoor heat energy, improve energy efficiency and save energy consumption.

It has high flexibility in design and function, and also performs well in maintenance and use efficiency. Choosing the right aluminum alloy sliding door can not only improve the beauty and practicality of the building, but also enhance the comfort of living and working.

Product Details

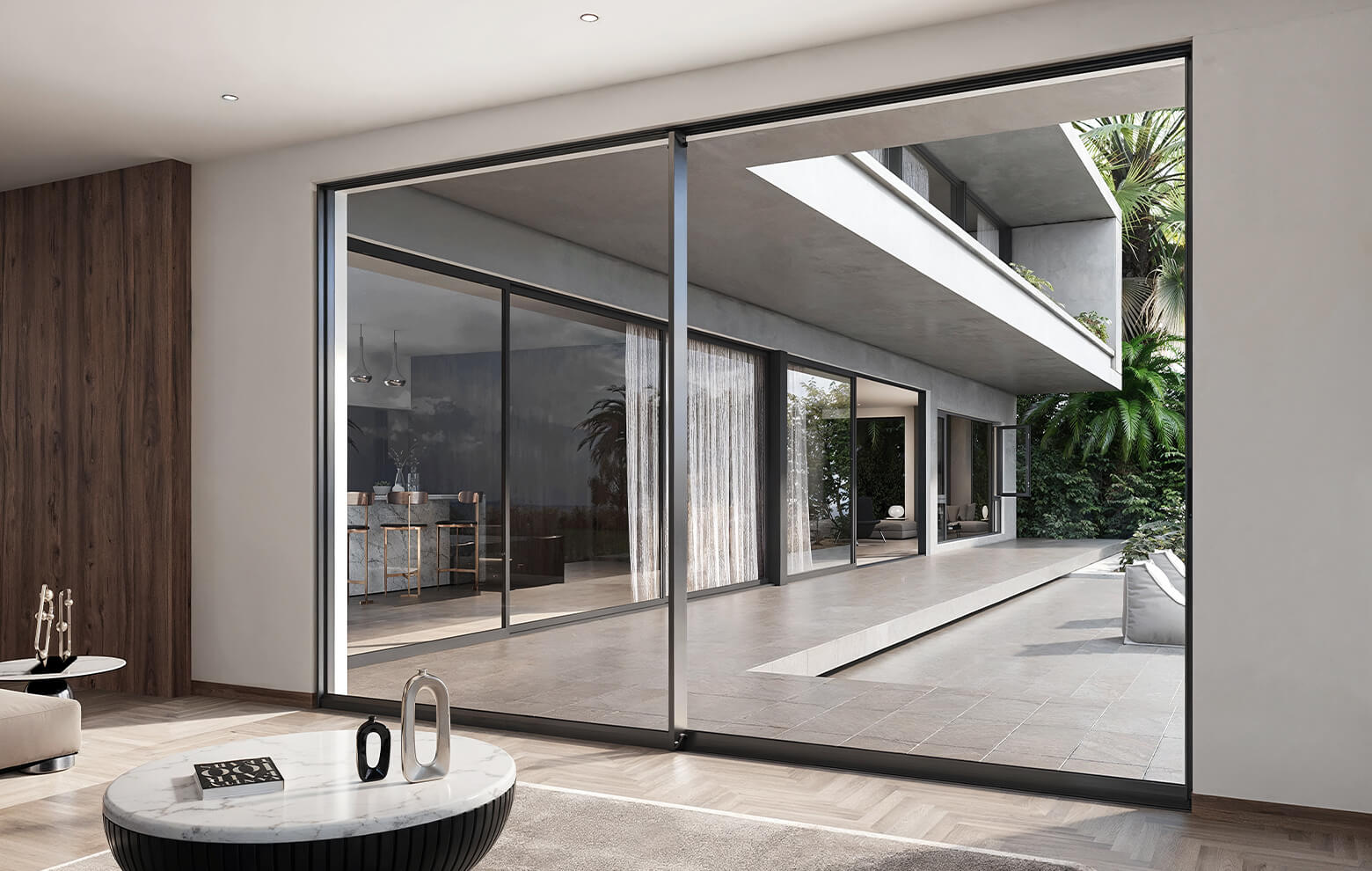

Minimalist panorama design (the interlock frame 26mm wide, the head/jamb embedded into the wall) create incomparable panorama view.

Optional electric control (Mijia intelligent interconnection, voice control, remote opening & closing, power failure emergency operation) provide the ultimate sense of technology and comfort.

The motor & transmission system are hidden in the specially designed profile structure.

Exclusively designed pulley bears max 900kG sash (4M wide X 3.5 M high).

It’s mounted at the sash bottom, which can be better protected during the installation process.

Dedicated D-Plus handle, multi-point lock & anti-misoperation device, highly improves the security and hardware durability.

Exclusive sealing ensures heat insulation & smooth operation.

When adopting the hidden drainage system, the bottom track flushes with exterior & interior floor, which makes the passage unobstructed.

Super-long stainless steel track is available, which makes the big size door slide smoothly and silently.

Technical Information	level
main frame thickness	2.2mm
opening sash max width/height	4000mm	3500mm
opening sash max weight/glass thickness	900KG	32mm
sound insulation (GB/T 8485)	36dB

Technical Information	level
water tightness(GB/T 7106)	250Pa≤ΔP≤350Pa (level 3) ΔP≥700 (level 6)
Air Leakage Resistance(GB/T 7106) Positive Pressure/Negative Pressure	q1≤0.5 [(m³/(m•h)]	q1≤0.5 [(m³/(m•h)]
Wind Load(GB/T 7106) standard mullion/heavy mullion	/	5000Pa
heat insulation (GB/T 8484)	2.2W/㎡•K （adopt Low-E glass)
