ROW Outward Opening Window Systems Minimalist Aesthetic ROW70

Anti-dropping design is used in the connection between the friction hinge and frame/sash, which effectively avoids the risk of the sash falling off.

The multi mushroom-head-shape lock point & embracing-type keeper ensure the anti-prying safety ability can reach the EU RC2 security level.

Optional half-open lock makes it possible for ventilation, meanwhile reduces the risk of objects (or urchins) falling.

Exclusively designed hardware mechanism ensures the fast assemble and reliable quality.

Multi continuous sealing (without sealing breakpoints) & anti-shrinkage of rubber seal ensure higher sealing ability & window performance.

Ergonomically designed handle (S-plus single-sided handle) make operation easy and comfortable.

Frame flushes with opening sash, making whole windows neat and cleaning easy.

Product Details

Frame flushes with opening sash, ensuring the neat & tough appear ance.

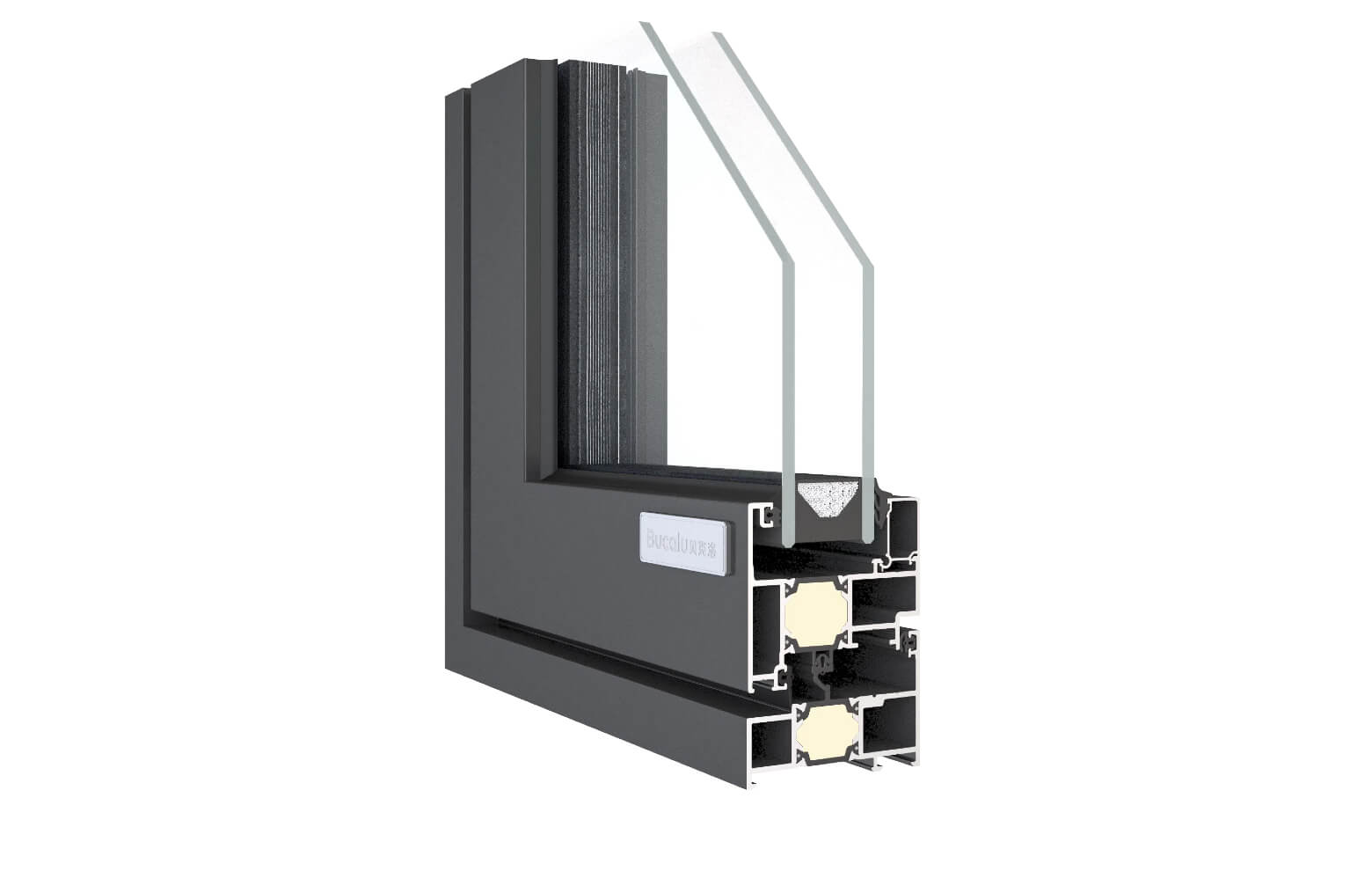

25-30mm wide thermal insulation strip & multi-cavity frame make excellent heat/sound insulation.

Anti-dropping design is used in the connection between the friction hinge and frame/sash, which effectively avoids the risk of the sash falling off.

The multi mushroom-head-shape lock point & embracing-type keeper ensure the anti-prying safety ability reach the EU RC2 security level.

Ergonomically designed handle (S-plus single-sided handle) make operation easy and comfortable.

Exclusively designed hardware mechanism ensures the fast assemble and reliable quality.

Technical Information	level
main frame thickness	1.8mm
opening sash max width/height	900mm	1700mm
opening sash max weight/glass thickness	50KG	48mm
sound insulation (GB/T 8485)	42dB

Technical Information	level
water tightness(GB/T 7106)	ΔP≥700 (level 6)
Air Leakage Resistance(GB/T 7106) Positive Pressure/Negative Pressure	q1≤0.5 [(m³/(m•h)]	q1≤0.5 [(m³/(m•h)]
Wind Load(GB/T 7106) standard mullion/heavy mullion	1600Pa	5000Pa
heat insulation (GB/T 8484)	1.3W/㎡•K （adopt Low-E glass)
