RSD Lift&Slide Door Electric Opening and DMAX view RSD135L

Bucalu established an industry-leading window and door laboratory and testing center. After ten years of relentless effort, our testing center now covers 4,000 square meters, with an investment exceeding 60 million yuan, performing approximately 11,000 tests annually. This has resulted in an extensive database and a wealth of technical expertise.

Product Details

Electric opening: Select imported DC brushless motor, fully electric control of door and window locks, even when going out without locking the door, it can be remotely controlled.



Magnetic field guidance control: Adopt internationally leading FOC operation control algorithm, with low noise, high efficiency, longer
service life, up to 200,000 times of repeated opening and closing without faults, exceeding the national standard by one time.



Durability: Special sliding components, stainless steel rails, overall smooth sliding without vibration, with stable performance, smooth sliding, durable and wear-resistant.



Sealing performance: The sliding adhesive tape is designed to seal the entire door, effectively blocking rain, water, mist, and haze, and providing insulation and energy conservation; Aiming at the dead corner of the upper and lower corners of conventional edging, Bucalu designed a special sealing device to improve the sealing ability of the sliding window.



Security: Hidden locking system, does not protrude from the surface of the profile, has a good appearance effect, and is safer to avoid scratches and collisions when entering and exiting; Humanized handle: Designed with humanized details such as anti-rebound and anti-pinch, providing comprehensive safety protection.

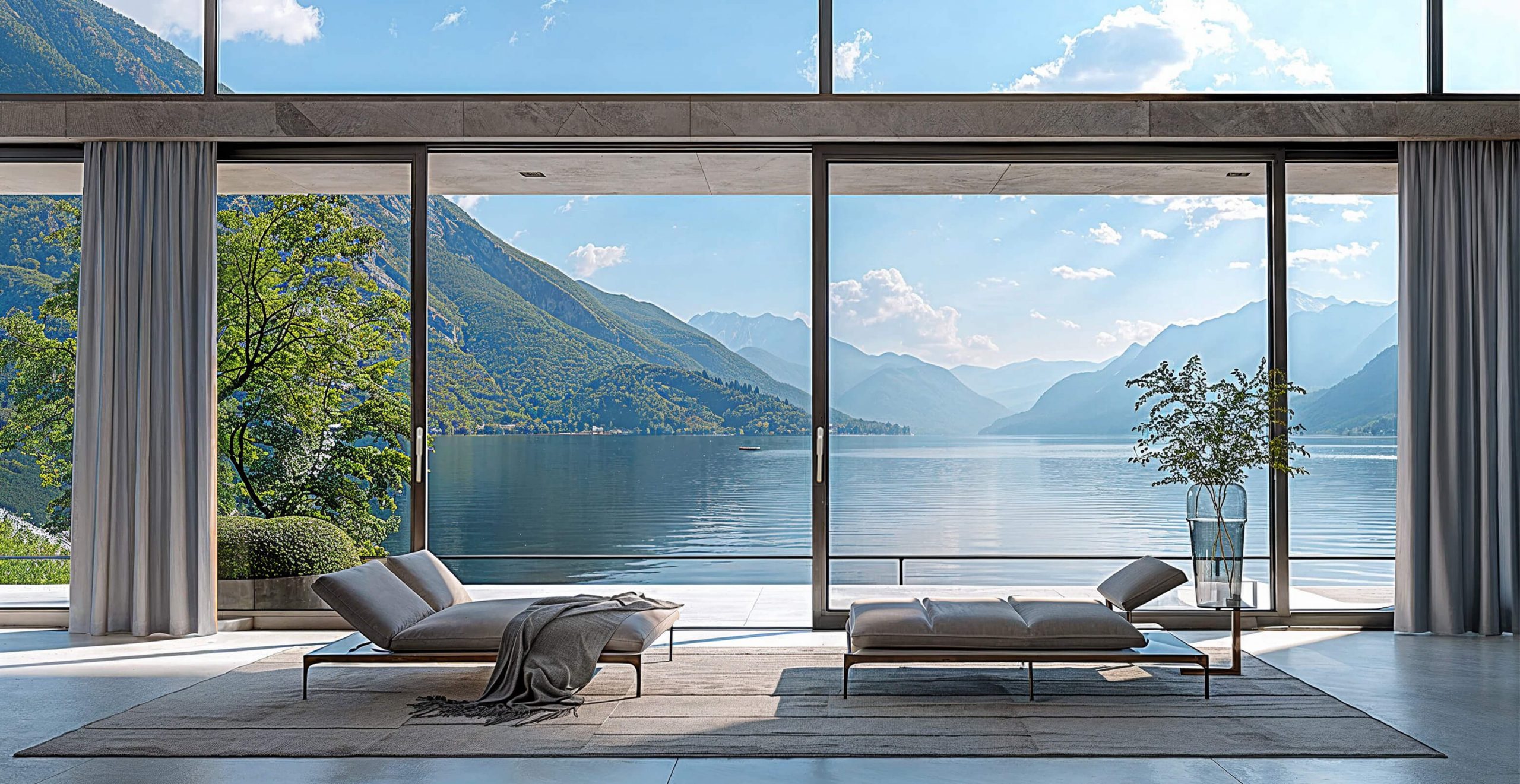

DMAX view: A single sliding sash can achieve a width of 3 meters, with a large window design that brings people and nature closer together, making the space more transparent and the view wider.



Hidden drainage design: Using a stepped drainage design, the displace­ment of drainage is more effective in waterproofing backflow, making it fearless of wind and rain when staying at home on rainy days.

Parameter

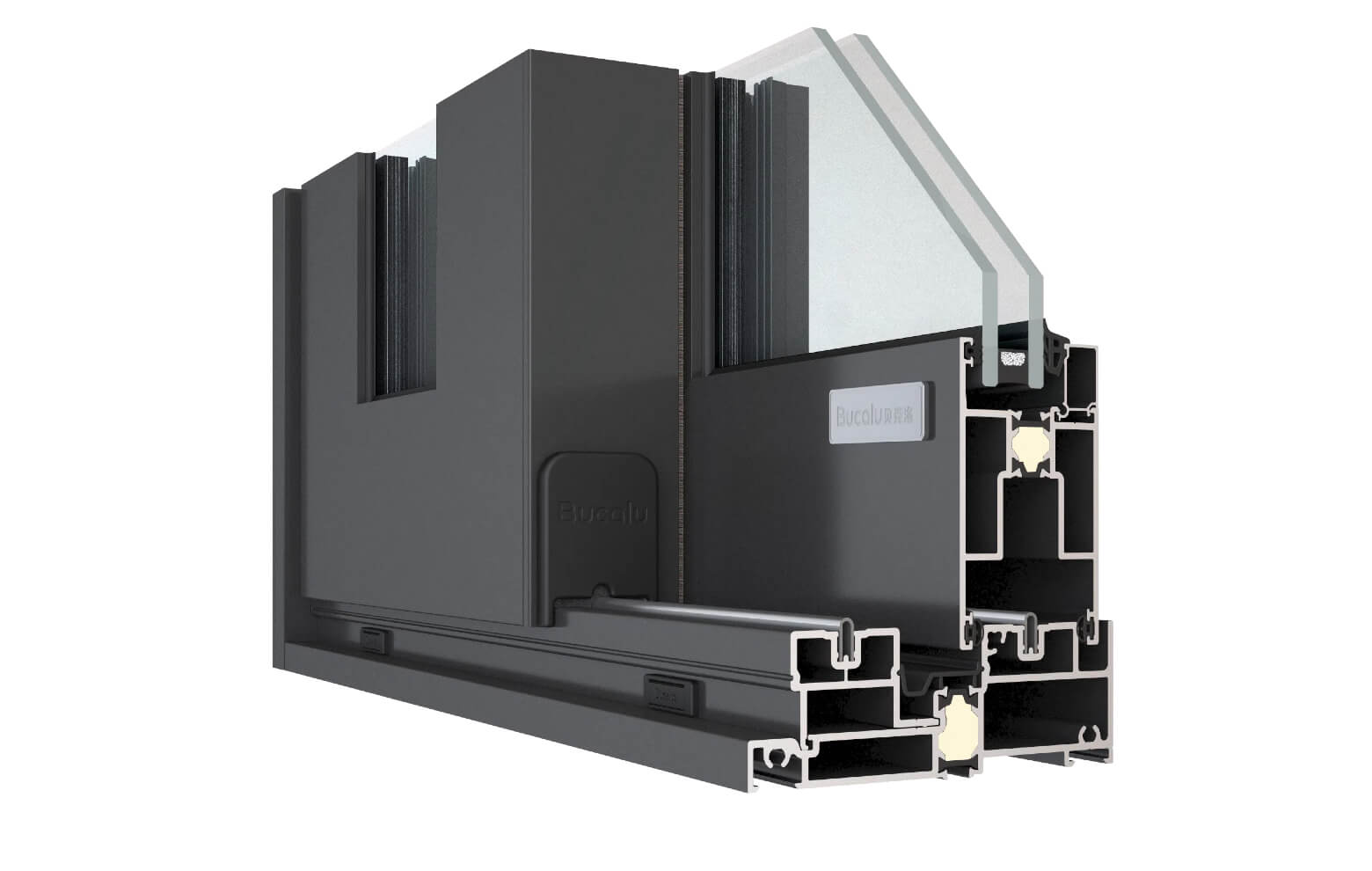

Wall thickness of main profile2.2mm
Waterproof performance GB/T 7106Lower frame A Up to Level 3 ,HD100B Up to Level 6
Wind load resistance performance GB/T 7106Normal edging Up to 1,500Pa
Strengthening edging Up to 5,000Pa
U value rating GB/T 8484Uw up to 1.8W/m²K



Opening Sash Size & WeightWidth≤3,000mm,Height≤3,000mm,Weight≤400Kg,Glass thickness≤38mm
Air permeability performance GB/T 7106Up to Level 8
Acoustic performance GB/T 8485Rw up to 37dB
