ROW Outward Opening Window with Parallel Opening Hinges ROW130F

Bucalu established an industry-leading window and door laboratory and testing center. After ten years of relentless effort, our testing center now covers 4,000 square meters, with an investment exceeding 60 million yuan, performing approximately 11,000 tests annually. This has resulted in an extensive database and a wealth of technical expertise.

Product Details

Opening method: The frame sash is designed to be flush both indoors and outdoors, with simple and neat lines, and a simple and flat facade effect. The window sash is in the open state, and the opening sash is parallel to the exterior facade of the building.

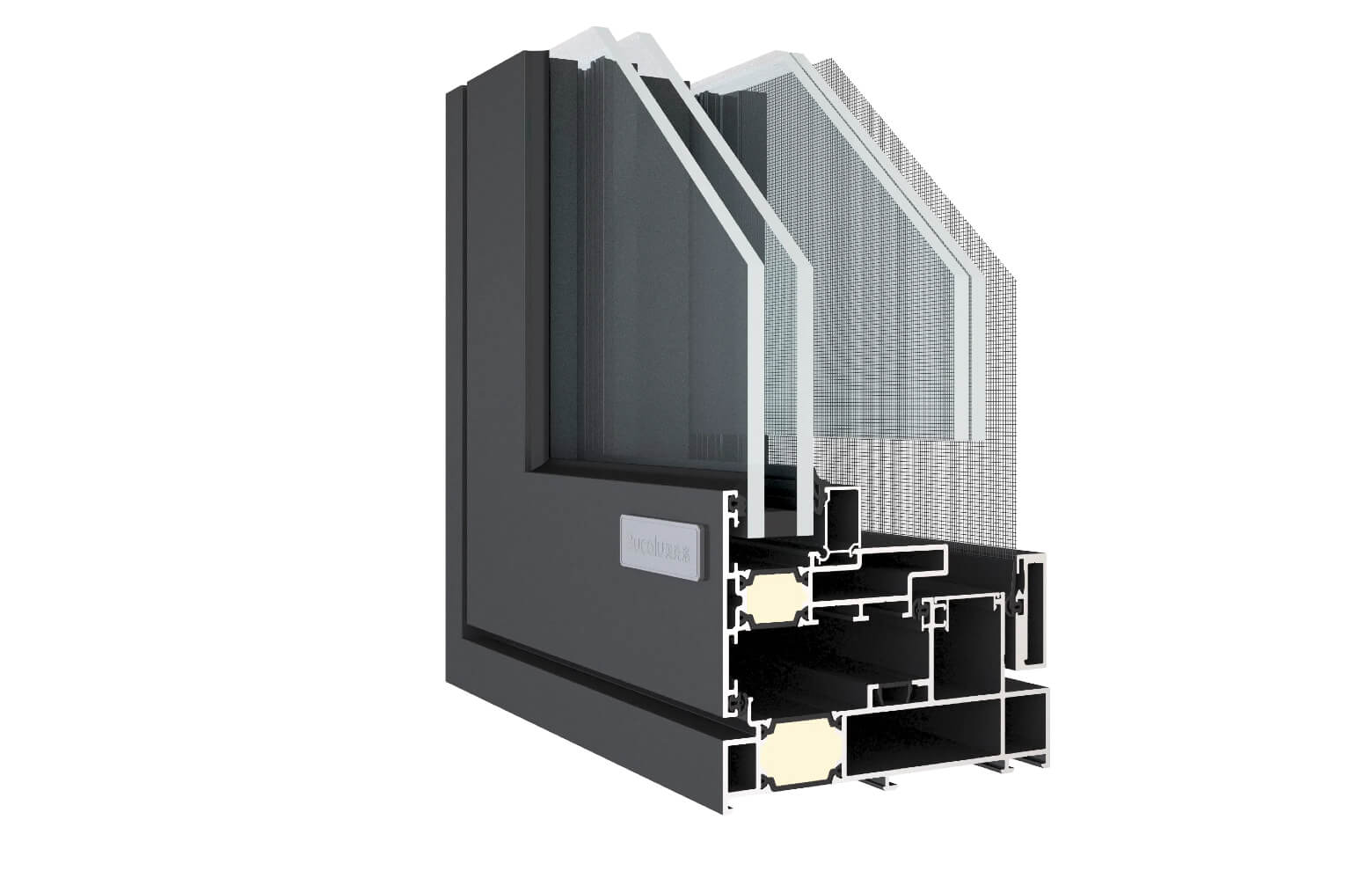

Two layers of high-strength sealing: A 130mm thick frame with exclusive insulation tapes of Bucalu, providing five layers of protection: heat preservation, thermal insulation, soundproofing, waterproofing, and durability.



Patent safety device: The Bucalu patented hinge technology effectively avoids the risk of window sash detachment and greatly improves the safety performance of sliding windows.



Integrated structure of window-screen-guardrail: The systematic structural design of screen window glass guardrail takes into account mosquito prevention and safety performance, multiple protections, and high practicality.



Ergonomic design: The push rod handle adopts the classic S-Plus series design of the Bucalu family, which has undergone extensive ergonomic research, making it labor-saving and more comfortable to use.



Upgraded configuration: The upgraded electric model; The pushrod handle is removed, so that the visual enjoyment is no longer interrupted.

Parameter

Wall thickness of main profile1.8mm
Acoustic performance GB/T 8485Rw up to 42dB
Air permeability performance GB/T 7106Level 8
U value rating GB/T 8484Uw up to 1.4W/m²K



Opening Sash Size & WeightWidth≤1,200mm,Height≤3,000mm,Weight≤150Kg,Frame≤44mm,Panel≤34mm
Waterproof performance GB/T 7106Level 6
Wind load resistance performance GB/T 7106Up to 5,000Pa
