Aluminum alloy folding doors are usually equipped with effective insulation materials, which helps to reduce the exchange of indoor and outdoor heat energy, improve energy efficiency and save energy consumption.
It has high flexibility in design and function, and also performs well in maintenance and use efficiency. Choosing the right aluminum alloy folding door can not only improve the beauty and practicality of the building, but also enhance the comfort of living and working.
Product Details

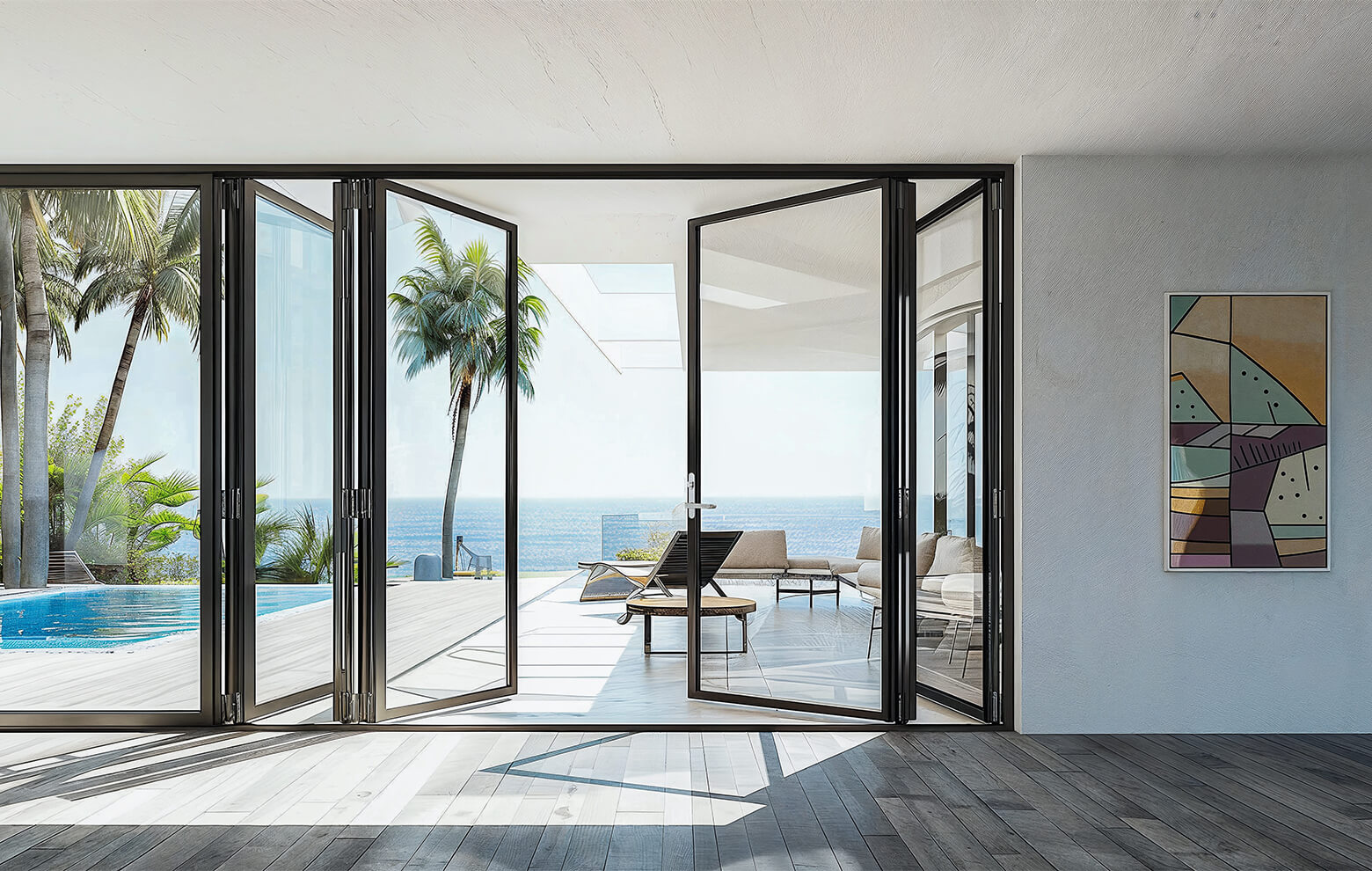

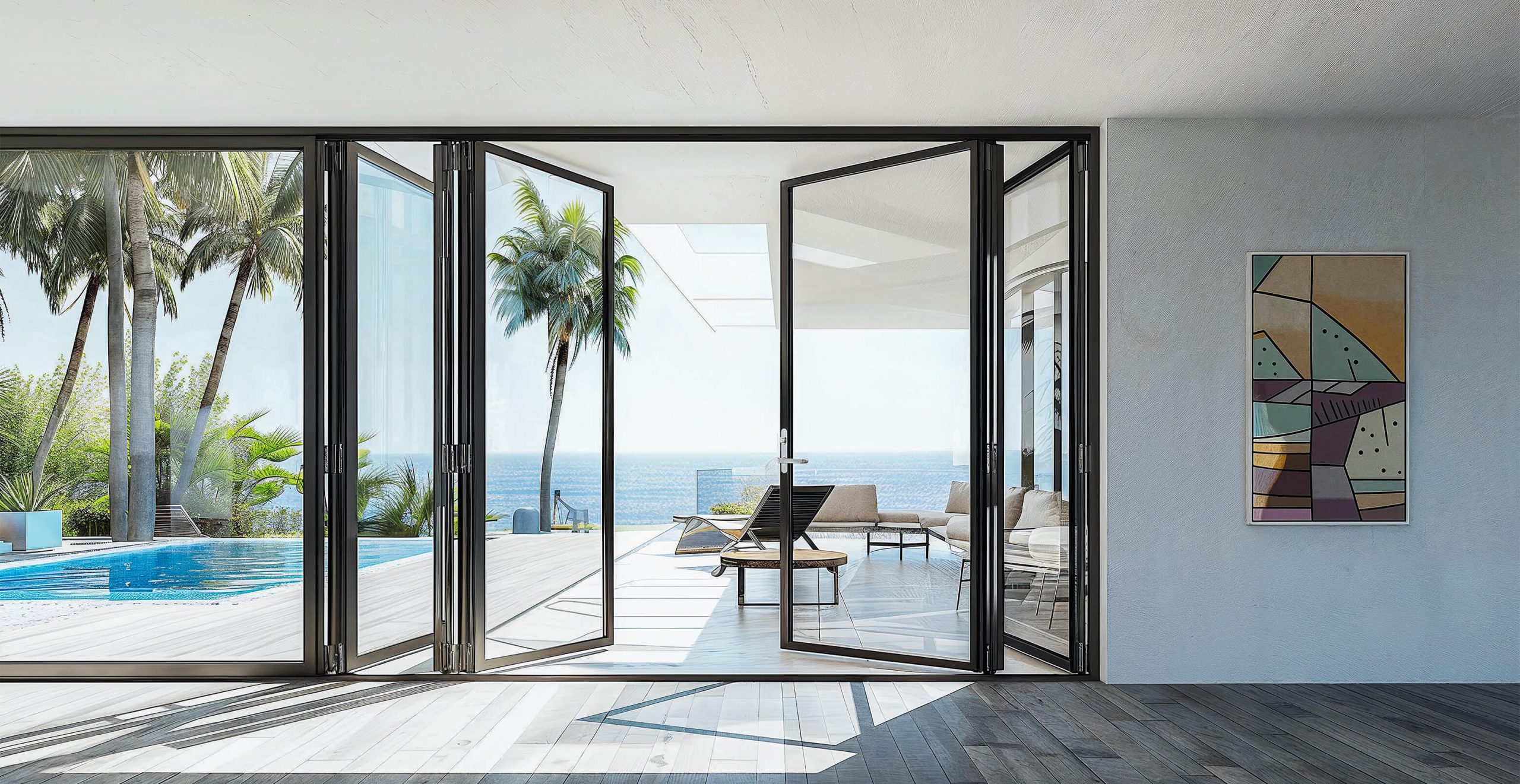

RFD70 make the max opening (90%) possible, so that the indoor & outdoor spaces can be naturally blended and converted at will.
The anti-pinch hand design seals between sashes can effectively avoid potential safety hazards to kids.

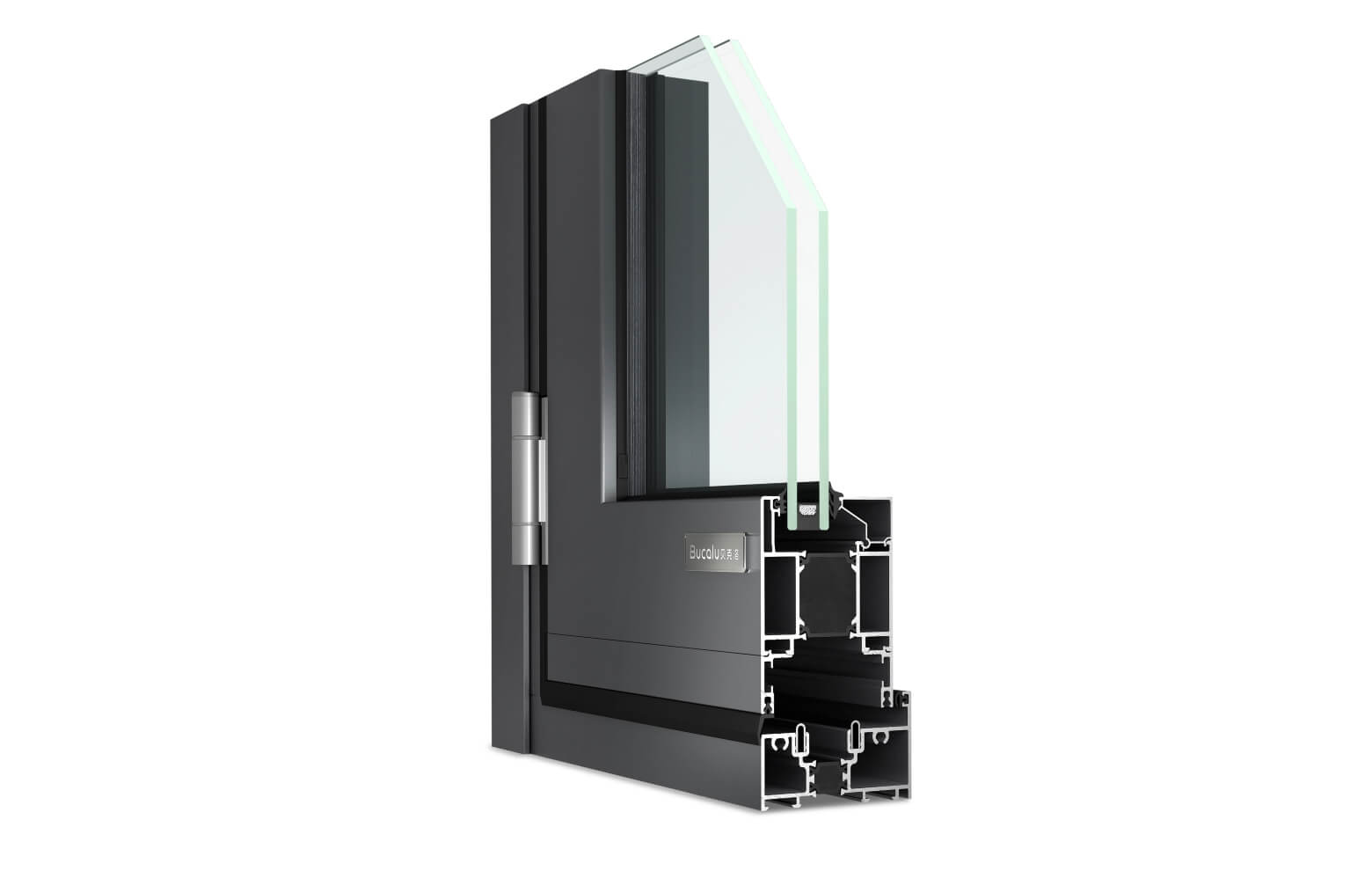

Multi sealing & integrated corner rubber strip, make RDF70 excellent in sound insulation, thermal insulation.
Concealed locking actuator links the top & bottom latch. By operating the actuator, the door sash can be lock/unlocked.
The double-track stainless steel rail & exclusive pulley ensure the stability & durability.
Outward/inward fold-sliding is optional; Variety of door sash combination is available.
| Technical Information | level | |
| main frame thickness | 2.0mm | |
| opening sash max width/height | (1200)1000mm | 3000mm |
| opening sash max weight/glass thickness | 900KG | 48mm |
| sound insulation (GB/T 8485) | 42dB | |
| Technical Information | level | |
water tightness(GB/T 7106) | 250Pa≤ΔP≤350Pa | ΔP≥700 |
Air Leakage Resistance(GB/T 7106) | q1≤0.5 | q1≤0.5 |
| Wind Load(GB/T 7106) standard mullion/heavy mullion | / | 3500Pa |
| heat insulation (GB/T 8484) | 1.6W/㎡•K | |
