RSW113P Sliding Window Systematic Drainage Design Stainless Steel Rails RSW113P

Bucalu established an industry-leading window and door laboratory and testing center. After ten years of relentless effort, our testing center now covers 4,000 square meters, with an investment exceeding 60 million yuan, performing approximately 11,000 tests annually. This has resulted in an extensive database and a wealth of technical expertise.

Product Details

Special sealing device: For the sealing dead corners of the upper and lower corners of the conventional edging, Bucalu has designed a special sealing device to make the slide window more capable of sealing.

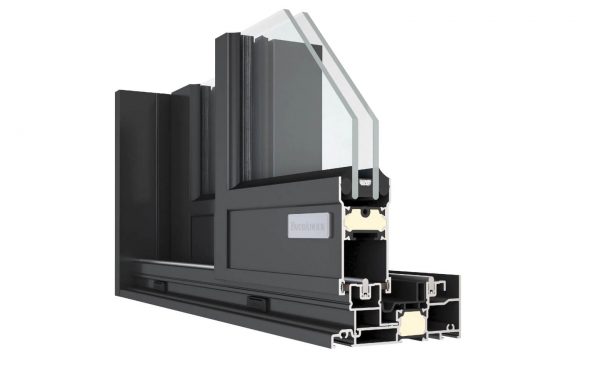

Systematic drainage design: The series design of lower frame stepped drainage structure, the outdoor independent track, and the wind pressure-resistant drainage hole cap make the drainage of doors and windows more smooth, and improves the processing efficiency and optimizes the cost.



Special sliding components: Stainless steel rails, which are smooth durable for pushing and pulling; Special pulley kit for slide window with longer service life is more wear-resistant; Overall smooth and vibration free sliding, more stable performance, and more comfortable use.



Safety hardware system: Multipoint locking system effectively improves locking strength and ensures safety performance.



Anti-misoperation device: Users cannot proceed, if they misoperate the handle, so as to avoid damage to doors and windows and make doors and windows more durable.

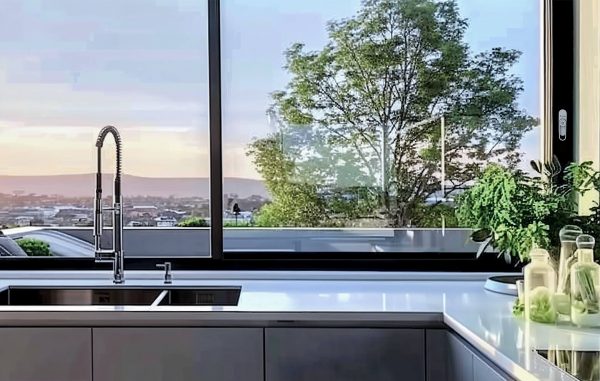

Simple and lightweight appearance: The overall appearance is beautiful and simple, without taking up indoor and outdoor space, harmoniously blending with the architectural space.

Parameter

Wall thickness of main profile1.8mm
Acoustic performance GB/T 8485Rw up to 37dB
Air permeability performance GB/T 7106Up to Level 8
U value rating GB/T 8484Uw up to 2.1W/m²K



Opening Sash Size & WeightWidth≤2,000mm,Height≤2,000mm,Weight≤160Kg,Glass thickness≤32mm
Waterproof performance GB/T 7106Up to Level 3
Wind load resistance performance GB/T 7106Standard mullion Up to 2,600Pa
Strengthen mullion Up to 4,000Pa
