Product Details
Max single sliding sash width reaches 3000mm, creating a grand large open space.
The whole door is sealed with rubber, keeping rainwater and haze out of the door, and is more heat-insulating & sound-insulating.
For the head & bottom interlock area, Bucalu develops exclusive sealing kits, further improving the sealing ability.
Stainless steel guide rail makes slide smooth and more durable. The exclusive lifting & sliding pulley kit ensures stable performance and comfortable use.
Stepped drainage structure, split exterior rail & wind-load-resistant drainage hole cover guarantees the performance in the storm.
When adopting the hidden drainage system, the bottom track flushes with exterior & interior floor, which making passage unobstructed.
Anti-rebound design, can avoid bumps caused by the handle rebounding too fast;
When closing the door, there’s sufficient operating space at handle area, no risk of handle-pinching.
Locking point & keepers are hidden into the profile, and are equipped with an exclusive anti-collision block and decorative buckle cover, making the appearance neat and avoiding to scratch the pedestrians.

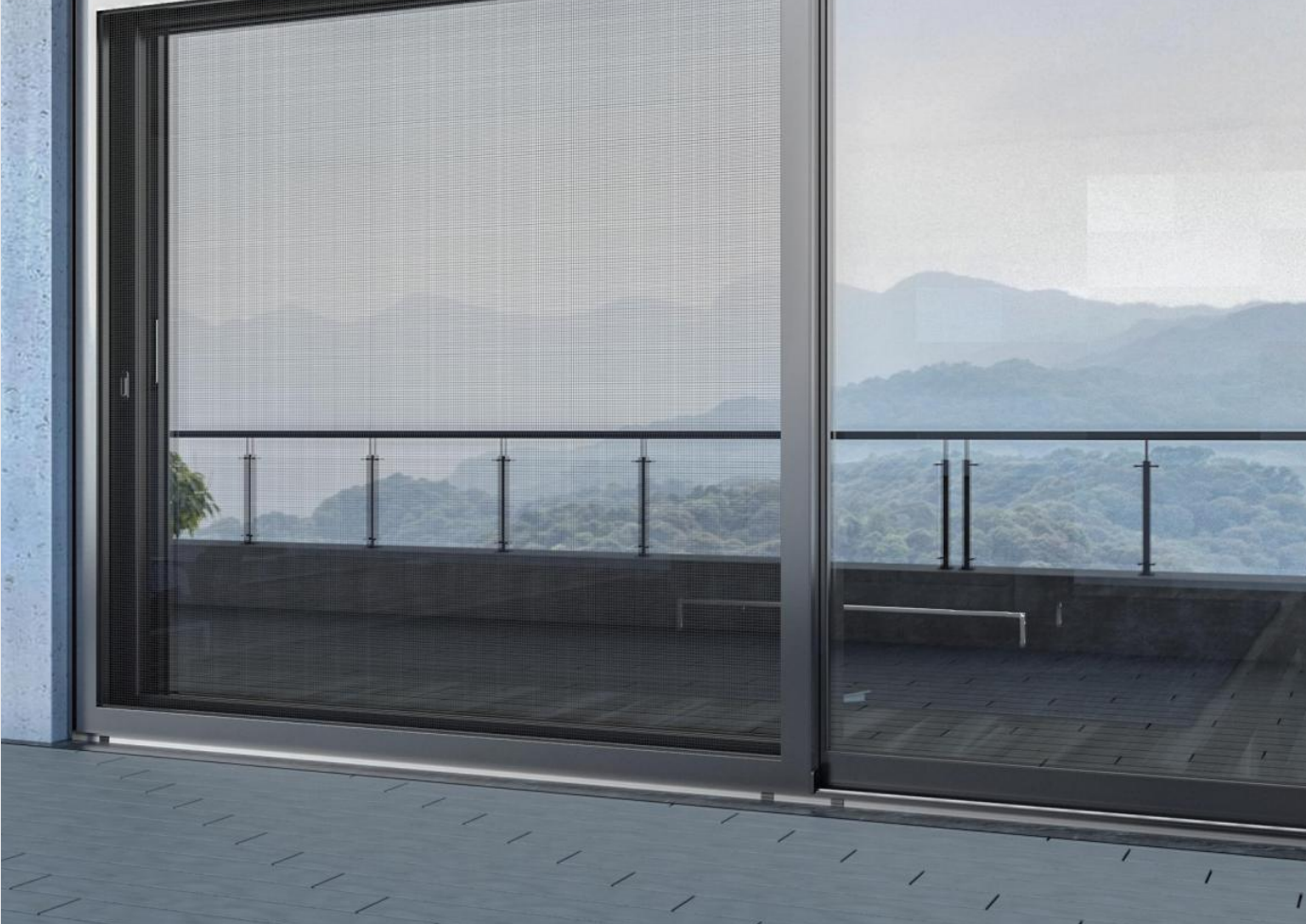

The wire mesh sash sits on the same track as glass sash, which making the appearance neat.
The mesh material is 304 stainless steel (φ0.5mm, 12 meshes), which is anti-scratch, anti-mosquito. Meanwhile, multi lock point ensures safety and durability.
High-transmittance 304 stainless steel screen(φ0.21mm, 20 meshes) and imported PET polyester fiber screen(φ0.15mm, 20 meshes) are optional.
POWDER COATING
WHAT PRODUCTS WE OFFER
As of now we have successfully designed, manufactured and supplied globally the entire range of aluminium architectural and industrial products and hardwares and it includes the following:
WHAT SERVICE WE OFFER
Customized
Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support
The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design
Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
FAQ
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What’s the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
Performance | ||||||||
Water Tightness (GB/T 7106) Normal Track /Hidden Drainage Type | Air Leakage Resistance (GB/T 7106) Positive Pressure /Negative Pressure | Wind Load(GB/T 7106) Standard Interlock /Heavy interlock | Heat Insulation (GB/T 8484) | |||||
250Pa≤ΔP≤350Pa (level 3) ΔP≥700 (level 6) | q1≤0.5 [(m³/(m•h)]q1≤0.5 [(m³/(m•h)] | 1500Pa5000Pa | 1.8W/㎡•K (adopt Low-E glass) |
Parameters | ||||||||
Main Frame Thickness | Opening Sash Max Width/Height | Opening Sash Max Weight/Glass Thickness | Sound Insulation (GB/T 8485) | |||||
2.2mm | 3000mm3000mm | 400KG38mm | 37dB |
