RSW-P Slim Sliding Window Panoramic View Design Minimalist Handle RSW140P

Bucalu established an industry-leading window and door laboratory and testing center. After ten years of relentless effort, our testing center now covers 4,000 square meters, with an investment exceeding 60 million yuan, performing approximately 11,000 tests annually. This has resulted in an extensive database and a wealth of technical expertise.

Product Details

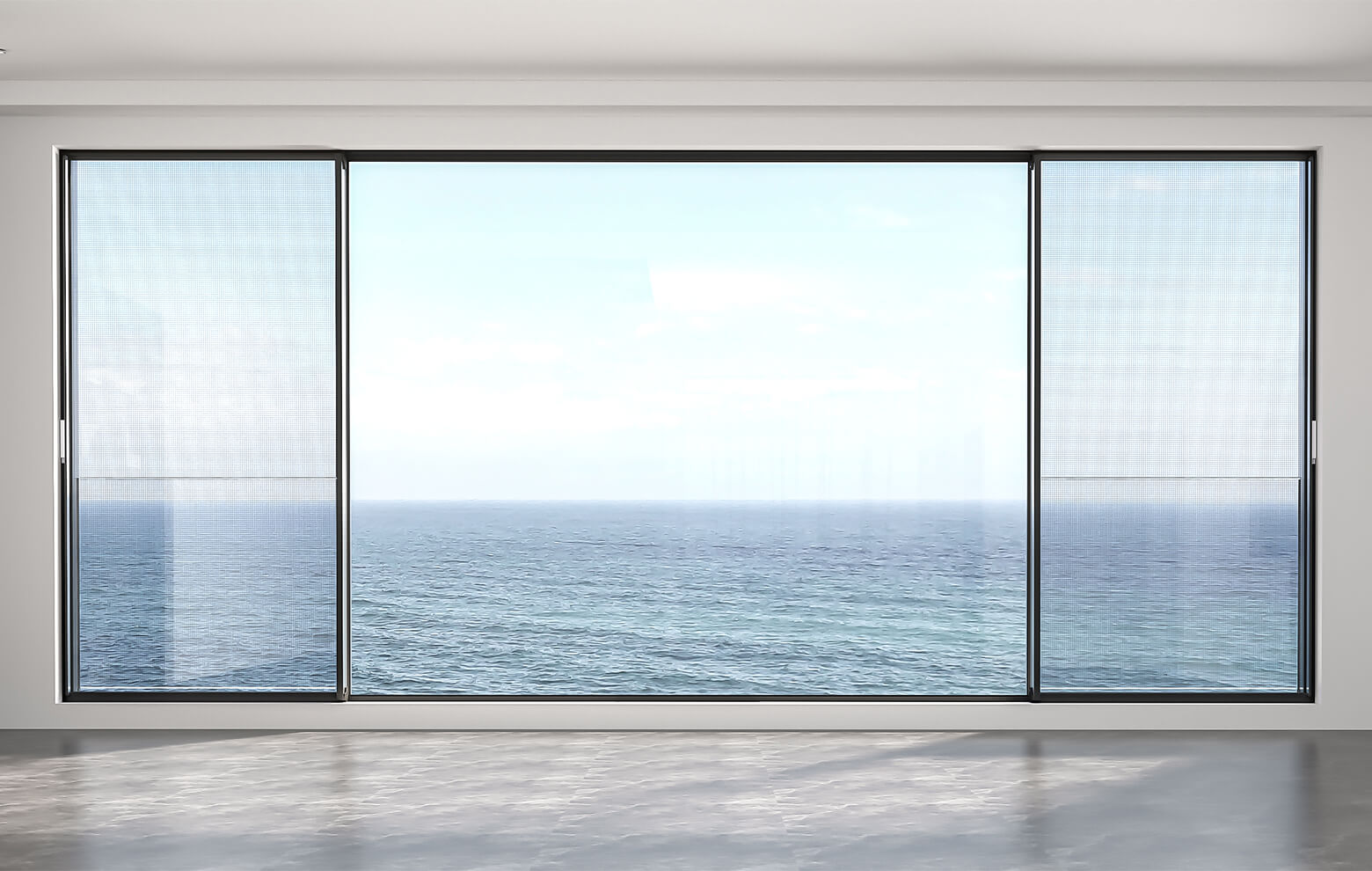

Ultimate panoramic design: Minimalist design with ultra narrow curved edges and hidden sash style frame embedded in the wall, breaking through the limitations of the frame and providing a wider view, providing a huge screen visual enjoyment at home.



Upgraded sealing technology: For the sealing dead corners of the upper and lower corners of the conventional edging, Bucalu has designed a special sealing device to make the slide window more capable of sealing.



Upgraded screen window protection: The systematic structural design of the screen window takes into account mosquito prevention and safety performance, with multiple protections and high practicality.



Advanced aesthetic design: The aesthetic design is minimalist in handle, combined with hidden multi-point locking for greater peace of mind.



Silent and durable pulley: The hidden pulley block adopts the silent configuration, and is beautiful and durable.

Parameter

Wall thickness of main profile2.2mm
Acoustic performance GB/T 8485Rw up to 36dB
Air permeability performance GB/T 7106Up to Level 8
U value rating GB/T 8484Uw up to 2.3W/m²K



Opening Sash Size & WeightWidth≤2,500mm,Height≤2,800mm,Weight≤160Kg,Movable panel≤32mm,Movable frame≤49mm
Waterproof performance GB/T 7106Lower frame A Up to Level 3 ,HD100B Up to Level 6
Wind load resistance performance GB/T 7106Up to 5,000Pa
